ব্লাড ব্যাংক রেফ্রিজারেটেড সেন্ট্রিফিউজ
Created with Pixso.

CFL6R Floor Standing Refrigerated Centrifuge with Eco-friendly R404a Refrigerant, Stainless Steel Panel, and GMP Compliance for Blood Bank and Laboratory Use

CFL6R Floor Standing Refrigerated Centrifuge with Eco-friendly R404a Refrigerant, Stainless Steel Panel, and GMP Compliance for Blood Bank and Laboratory Use

ব্র্যান্ড নাম: Cenlee
মডেল নম্বর: CFL6R
MOQ: 1
বিস্তারিত তথ্য
উৎপত্তি স্থল:
হুনান, চীন
সর্বাধিক গতি:
6000r/মিনিট
সর্বাধিক আরসিএফ:
6680×g
সর্বোচ্চ ক্ষমতা:
6000 এমএল
গতি নির্ভুলতা:
±20r/মিনিট
তাপমাত্রা ব্যাপ্তি:
-20 ℃ ~+40 ℃ ℃
তাপমাত্রা নির্ভুলতা:
± 1 ℃ ℃
শক্তি:
5.5kW
বিদ্যুৎ সরবরাহ:
AC 220V 50Hz20A
মেশিনের শব্দ:
≤65dB(A)
মাত্রা:
830×720×1250mm
নেট ওজন:
268 কেজি
মোটর চালনা:
ফ্রিকোয়েন্সি রূপান্তরিত মোটর
রটার টাইপ:
কোণ রটার, সুইং আউট রটার
রটার ক্ষমতা:
6×300ml, 6×500ml, 6×1000ml
রটার গতি:
6000r/মিনিট, 4200r/মিনিট
বিশেষভাবে তুলে ধরা:

Eco-friendly R404a Refrigerant Centrifuge

,

Stainless Steel Panel Centrifuge

,

GMP Compliance Blood Bank Centrifuge

পণ্যের বর্ণনা

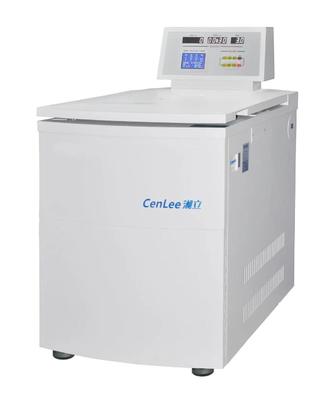

CFL6R Floor Standing Large Capacity (6x1000ml) Refrigerated Centrifuge
The CFL6R is a preparative large-capacity refrigerated centrifuge designed for high-performance separation applications in various industries.
Product Advantages
  • Flexible anti-friction system reduces wind resistance for faster acceleration to maximum speed
  • Eco-friendly R404a refrigerant system for fluorine-free, high-efficiency refrigeration
  • 6L large capacity separation capability
  • Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
  • Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification
Key Features
  • User-friendly touch panel with LED digital or LCD display for real-time parameter adjustment
  • High-power brushless frequency conversion motor with European ultra-high speed bearings
  • Advanced frequency conversion speed controller for precise operation
  • Imported compressor unit with precise temperature control (±1℃), low vibration and noise
  • Programmable operation with storage for 9 user-defined programs and 40 custom working modes
  • Pre-cooling chamber design for fast cooling and efficient operation
  • Comprehensive safety system including double door lock, over-temperature/speed protection, and self-diagnosis
  • Pulse function for short centrifugation cycles
Technical Specifications
Model CFL6R Cryogen R404a
Maximum speed 6000r/min Acc/Dec time Customizable
Maximum RCF 6680×g Timing range 0-999min
Maximum capacity 6000ml Power 5.5KW
Speed accuracy ±20r/min Power supply AC 220V 50Hz 20A
Temperature range -20℃~+40℃ Noise level ≤65dB(A)
Temperature accuracy ±1℃ Dimensions 830×720×1250mm
Motor drive Frequency converted motor Net weight 268kg

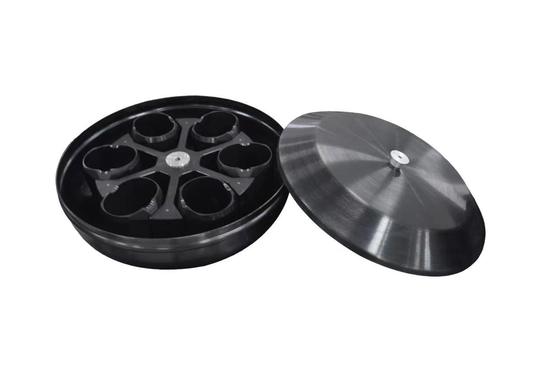

CFL6R Rotor Specifications
Rotor type No. Capacity Max Speed (r/min) Max RCF (×g)
Main machine CFL6R 6000 6680
Angle rotor NO.1 6×300ml 6000 5650
Angle rotor NO.2 6×500ml 6000 6680
Swing out rotor NO.3 6×1000ml 4200 5100
